Decoder: Upper Layer (Layer 3) Signaling Standard for cdma2000 Spread Spectrum Systems

P_REV
SDU type
Binary data
I am not a robot

Click on the fields below to see the related bits evidenced on the right:

ERRORS:

Error: please, click on the I am not a robot checkbox.

No binary data

Instructions

The C.S0005 decoder, based on the Encodix code generator, decodes the 3GPP2 SDUs as defined by specification C.S0005 for all revisions up to REV-13 (see 3GPP2, C.S0005-F 2.0).

Example

We would like to decode a Data Burst Message (DBM) on the r-dsch using REV 7; this SDU is defined on C.S0005 at chapter 2.7.2.3.2.4.

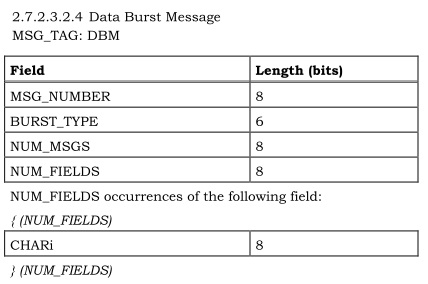

This is how it is defined on the specification:

We want to set MSG_NUMBER=12, BURST_TYPE=4, NUM_MSGS=4 and NUM_FIELDS=5; then the five CHARi fields will be set to 1, 2, 3, 4 and 5. Click here to run the decoder.

Binary input field

The binary input field supports the following format:

0/1Numbers 0 and 1 are inserted as bits. So 1100 is encoded as four bits 1, 1, 0 and 0.
dNwhere N is a decimal value in range 0..255; it is encoded as an 8 bit value. For example, d240 will be encoded as 11110000.
xNwhere N is an hex value in range 0..FF; it is encoded as an 8 bit value. For example, xF0 will be encoded as 11110000.
d{K}N / x{K}NSame as dN/xN but encoded in K bits. For example, d{3}2 will be encoded as 010.
